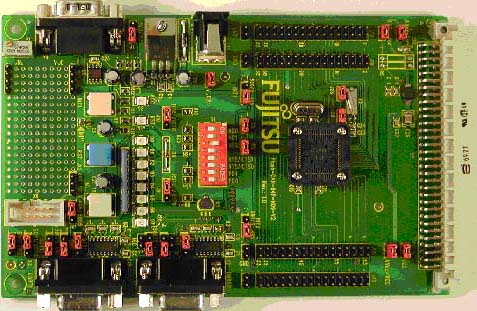

The Flash-CAN-64P-M09-V2 is a low cost multifunctional evaluation board for the Fujitsu 16-Bit Flash microcontroller series MB90560, MB90565, MB90460 and MB90495.
It can be used stand alone for software development and testing or as a simple target board to work with the emulator system.
The board allows the designer immediately to start with the software development before his own final target system is available.
The Flash-CAN-64P-M09-V2 was designed to support the MB90560, MB90565, MB90460 and MB90495 series.
It can be used as a stand alone evaluation board or as a target board for emulator debugger.
The evaluation board supports following package: FPT-64P-M09 (square QPF64 package, 0,65mm pitch)
|
|
|
|
 |
Supports 16-Bit LX series MB90560, MB90565, MB90460 and MB90495G
|
|
Fully supports 3V and 5V environment
|
|
QFP-64 package can be used
|
|
In-Circuit serial Flash programming
|
|
All resources available for evaluation
|
|
All pins routed to connectors
|
|
4MHz main crystal
|
|
Two UART Interfaces (3V and 5V operating)
|
|
CAN Interface (MB90495)
|
|
8 User LEDs
|
|
Reset Button
|
|
Two Buttons configurable for external interrupts
|
|
Prototyping area
|
|
64-pin VG connector
|
|
Flash Programming Socket
|
|
Package content
|
Flash-CAN-64P-M09-V2 board
|
|
Documentation of the board
|
|
Microcontroller CD
|
|
Additionally Jumper
|
|
MB90F497GPFM MCU
|
|
Screw driver for QFP-socket
|
|
|
|
|
|
|
| Note: The use of Adobe's Acrobat Reader 4.0 is recommended to have all download
and
browsing
features
available
for
pdf
files.
|
|
 |
|
Evaluation Board Documentation V3-2
27 pages, 3348 KB
|
|
 |
|
