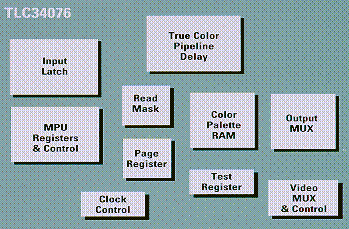

TLC34076-135

• Description:
  Video interface palette

• Incorporates high-speed timing, synchronizing, and multiplexing logic usually associated with graphics systems into one device; this reduces chip count, complexity, and cost.
• Versatile multiplexing interface allows lower pixel bus rate.
• True color (direct addressing) modes support various 24- and 16-bit formats
• 256-word color palette RAM
• Can be connected directly to the serial port of RAMs, eliminating the need for any discrete logic.
• CPGA packaging.
• SMD planned.
