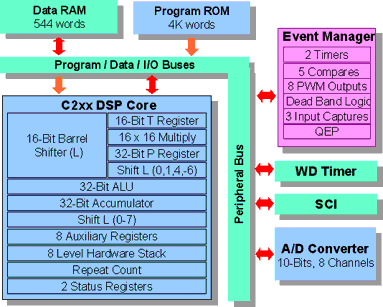

TMS320C242 Diagram Features: Optimized for low-cost, high-volume applications 50ns instruction cycle time (20 MIPS) 4K words of on-chip ROM memory Motor control optimized Event Manager A/D converter with <1.0ms conversion time UART (SCI) @ 1.2Mb/s Feature-packed peripherals Supported by ‘F241 for pre-production prototyping
