Evaluation Modules
Product Features
- Allows quick, easy, and accurate evaluation of TI's LVDS products
- Permits different interconnections for various topologies
- Supporting documentation included

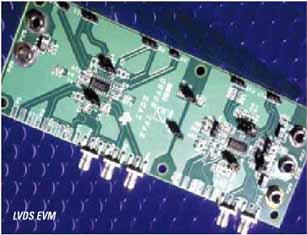

In an effort to help system designers reduce design cycle time, Texas instrument has designed an accurate and easy-to-use evaluation module (EVM) for its Low-voltage Differential Signaling (LVDS) products. Flexibility has been designed into this EVM so it can be set-up in a point-to-point topology (1 driver to 1 receiver), a multidrop topology (1 driver to various receivers), and even receive TIA/EIA-422 data into an LVDS receiver. Detailed instructions and diagrams have been included for above mentioned interconnections to facilitate set-up.
Although this EVM is only equipped with the products SN65LVDS31 and SN65LVDS32, the results represent transmitting characteristics also found in SN65LVDS9637, SN65LVDS9638, SN65LVDS3486, and SN65LVDS3487.
Download the documentation by clicking on the device name below:
To order the SN65LVDS31/32 EVM:
Please contact your local TI Authorized Distributor or your local TI sales office. In USA you may call TI's Literature Response Center at 1-800-477-8924, ext. 5800.
Price: $35
|
