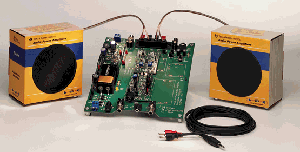

| Base Kit |
The base kit provides the interface to the modular EVMs, stereo speakers and headphones, audio source and power supply. It has three dedicated sockets for testing either two mono or one stereo amplifier, and a 9 V battery socket for battery-operated applications. Includes DC/DC Converter (SLVP097) and Microphone Mixer (SLOP107). US $225.00 (SLOP114) |
TPA005D02  Data Sheet |
The industry's first full integrated, stereo Class-D amplifier that extends battery life over three times! It is capable of driving stereo speakers at 2 W continuously with 5 W peaks from a 5 V supply. The device also features shutdown control to further minimize supply current and extend battery life. Package: 48-pin TSSOP. US $100 (SLOP223) |
| TPA102 Data Sheet |
A 150 mW audio power amplifier designed to drive stereo headphones. The supply voltage range of 2.5 V to 5.5 V and shutdown mode make this amplifier ideal for battery powered portable applications. Package: 8-pin MSOP PowerPAD. US $50.00 (SLOP125) |
| TPA112 Data Sheet |
A 150 mW single ended audio power amplifier with a standard op amp pinout. The ultra-small MSOP package requires minimal PCB space. Package: 8-pin MSOP PowerPAD. US $50.00 (SLOP126) |
| TPA122 Data Sheet |
A 150 mW audio power amplifier designed to drive stereo headphones. The supply voltage range of 2.5 V to 5.5 V and shutdown mode make this amplifier ideal for battery powered portable applications. Package: 8-pin MSOP PowerPAD. US $50.00 (SLOP127) |
| TPA4860 Data Sheet |
A 1 W bridge-tied load (BTL) mono audio power amplifier that provides high power supply rejection (75 dB) for increased fidelity. It is characterized at 3.3 V and 5 V operation, and features shutdown control and headphone interface logic circuitry. Package: 16-pin SOIC. US $50.00 (SLOP098) |
| TPA4861 Data Sheet |
Identical functionality as the TPA 4860, minus the headphone interface logic circuitry. Package: 8-pin SOIC. US $50.00 (SLOP099) |
| TPA301 Data Sheet |
A low-voltage bridge-tied load (BTL) audio power amplifier capable of delivering 350-mW to the load. It is characterized at 3.3-V and 5-V, but will operate from 2-V to 5.5-V. To minimize power consumption, this device features a shutdown mode, holding IDD<0.15µA. Package: 8-pin SOIC PowerPAD. US $50.00 (SLOP115) |
| TPA302 Data Sheet |
A 300 mW single-ended stereo audio power amplifier designed to drive headphones. It requires only 5 mA (Max) of supply current, and offers shutdown control for extending battery life. Package: 8-pin SOIC. US $50.00 (SLOP100) |
| TPA152 Data Sheet |
A 75-mW single-ended hi-fi stereo audio power amplifier designed to drive headphones. Integrated depop circuitry eliminates speaker noise when the amplifier turns on, off, or exits shutdown. Package: 8-pin SOIC PowerPAD. US$50.00 (SLOP124) |
| TPA311 Data Sheet |
A 350-mW audio power amplifier capable of operating in both bridge-tied load (BTL) and single-ended (SE) modes for low-voltage applications requiring an external speaker and earphone. The device will switch between BTL and SE modes on-the-fly. The TPA 311 is characterized at 3.3-V and 5-V, and features a shutdown mode. DEPOP circuitry eliminates speaker noise when the amplifier turns on, off, or exits shutdown. Package: 8-pin SOIC PowerPAD. US $50.00 (SLOP116) |
| TPA311DGN Data Sheet |
A 350-mW audio power amplifier capable of operating in both bridge-tied load (BTL) and single-ended (SE) modes for low-voltage applications requiring an external speaker and earphone. The device will switch between BTL and SE modes on-the-fly. The TPA 311 is characterized at 3.3-V and 5-V, and features a shutdown mode. DEPOP circuitry eliminates speaker noise when the amplifier turns on, off, or exits shutdown. Package: 8-pin MSOP PowerPAD. US $50.00 (SLOP123) |
| TPA0102 Data Sheet |
A complete 1.5 W stereo audio solution that replaces two mono amplifiers plus a third headphone drive IC with one complete solution. Package: 24-pin TSSOP PowerPAD. US $70.00 (SLOP101) |
| TPA0103 Data Sheet |
A 1.75-W mono speaker or stereo headphone solution. The device features an integrated input MUX which allows two individual stereo inputs. Package: 24-pin TSSOP PowerPAD. US $70.00 (SLOP103) |
| TPA0202 Data Sheet |
A complete 2-W stereo audio solution that replaces two mono amplifiers, plus a third headphone drive IC, with one complete package. DEPOP circuitry eliminates speaker noise. Package: 24-pin TSSOP PowerPAD. US $70.00 (SLOP202) |
TPA1517DWP
TPA1517NE Data Sheet |
A 6 W single-ended stereo audio power amplifier with a supply voltage range of 9.5 V to 18 V and a mute/standby mode. Two EVMs are available for each package type. Packages: 20-pin SOIC PowerPAD (SLOP106) and 20-pin DIP (SLOP105). US $70.00 each |
| DC/DC Converter |
A DC/DC buck converter which provides a 5 V or 3.3 V output at up to 2.5 A with an input voltage range of 5.5 V to 12 V. The TL5001 PWM controller operates at a nominal frequency of 275 kHz and is configured for a maximum duty cycle of 100% with built-in short circuit protection. Included with Base Kit. US $50.00 (SLVP097) |
| Microphone Mixer |
A mixer module designed to provide basic volume control and a microphone interface. The module uses a low noise TLC2274 quad CMOS rail-to-rail output op amp. Included with Base Kit. US $70.00 (SLOP107) |
