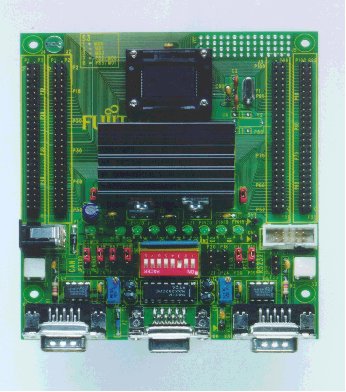

This report describes the basic features of the new FLASH-CAN-100-M06 board.
This board can be used with almost all our 16LX microcontroller series supporting the FPT-100P-M06 package.
Note, this board must only be used for test applications in a laboratory environment.
The "Flash/CAN100"-board was developed, in order to support customers and allow a fast software design start.
As you all know our emulators require a target system that provides Vcc and Gnd as well as an oscillation circuit.
Additionally most of our flash microcontroller support the burn-in flash programming algorithm.
The new target board will be delivered with the MB90F598 single-CAN, 128KByte flash microcontroller.
This microcontroller contains the 'burn-in'-boot loader for programming the flash.
Please contact your nearest MCU support centre for flash-programming utilities and test software (e.g. OSEK-demo software).
The flash-programming software allows to program a blank flash microcontroller.
|
|
|
|
 |
a new 100-pin socket adaptor for better connectivity
|
|
7-14V unstabilized external DC power supply possible
|
|
5V and 3.7V internal power supply available
|
|
two high-speed CAN drivers
|
|
one RS232 interface
|
|
two identical pin connectors for all MCU pins
|
|
optional sub-clock
|
|
RST, HST push-button
|
|
8 test LED
|
|
external reset via RS232
|
|
Supported Microcontroller Series:
|
MB90590, MB90V590, MB90F594/A, MB90594/A, MB90591, etc.
|
|
MB90595, MB90V595, MB90F598, MB90598, etc.
|
|
MB90550, MB90V550, MB90F553A, MB90553A, etc.
|
|
MB90540, MB90V540, MB90F544, etc.
|
|
|
|
|
|
|
| Note: The use of Adobe's Acrobat Reader 4.0 is recommended to have all download
and
browsing
features
available
for
pdf
files.
|
|
 |
|
FLASH-CAN 100-Board Documentation V2-05
12 pages, 5217 KB
|
|
|
|
|
PFT package 0.65mm QFP
1 page, 109 KB
|
|
 |
|
