Texas Instruments

SC Applications & Technologies
Blue Band
Military Applications

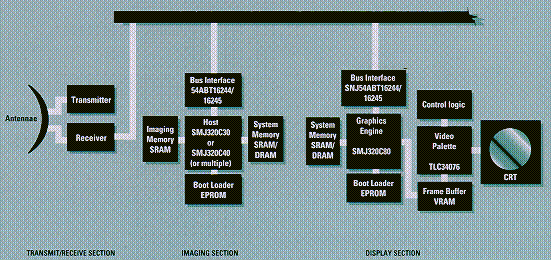

Radar Solution

Radar
  • DSP-based imaging and display systems are highly integrated resulting in small, inexpensive solutions.
  • Ada compiler is available to meet DoD requirements.
  • Silicon and development systems are available "off-the-shelf" to decrease development time.
  • All devices shown are qualified under QML.

PARTS LISTDESCRIPTION
SMJ320C67016th Generation Floating-Point DSP
SMJ320C62016th Generation Fixed-Point DSP
SMJ320C303rd Generation Floating-Point DSP
SMJ320C404th Generation Floating Point DSP
SMJ320MCM41ASingle C40 MCM with 4M SRAM
SMJ320MCM42ADual C40 MCM with 8M SRAM
SMJ320C80'C80 DSP
TLC34076-135Video Interface Palette
SNJ54ABT1624x16-bit Widebus Buffer/Transceiver
SMJ4xxxx1M - 16M DRAM
SMJ27Cxxx256K - 4M UV EPROM

Military Semiconductor

12/98
