Tactical Missile Solution

Tactical Missiles

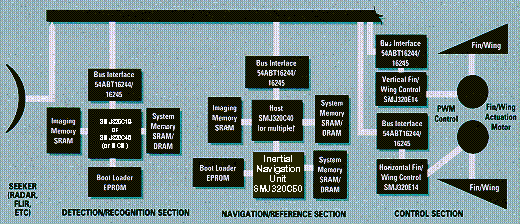

Missile system diagram
  • High level of integration results in a small, lightweight guidance section.
  • Ada compiler is available to meet DoD requirements.
  • Silicon and development systems are available "off-the-shelf " to decrease development time.
  • All devices shown are qualified under QML.
PARTS LISTDESCRIPTION
SMJ320C67016th Generation Floating-Point DSP
SMJ320C62016th Generation Fixed-Point DSP
SMJ320C303rd Generation Floating-Point DSP
SMJ320C404th Generation Floating-Point DSP
SMJ320MCM41ASingle C40 MCM with 4M SRAM
SMJ320MCM42ADual C40 MCM with 8M SRAM
SMJ320C505th Generation Fixed-Point DSP
SMJ320F240Fixed-Point DSP Motor Controller
SMJ27Cxxx256K - 4M UV EPROM
SMJ4xxxx1M - 16M DRAM
SNJ54ABT1624x16-bit Widebus Buffer/Transceiver

Military Semiconductor

12/98
