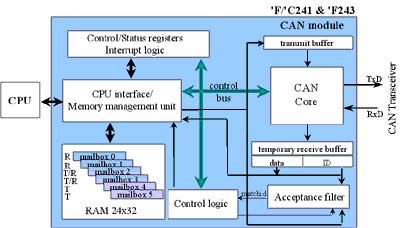

'C24x Block Diagram
Device Specifications
Features

|
|
Control Area Networking (CAN) Module |
 |
Features:
- Full CAN controller
- 16-bit peripheral
- Specification 2.0B active
- Send and accept standard (11-bit identifier) and extended frames (29-bit identifier)
- 6 mailboxes for object of 0 to 8 bytes data length
- 2 receive mailboxes (mailboxes 0 &1)
- 2 transmit mailboxes (mailboxes 4 & 5)
- 2 configurable transmit/receive mailboxes (mailboxes 2 & 3)
- Self test mode
- The CAN controller receive its own transmitted messages
- Programmable bit rate
- Programmable global masks
|
