'C24x Block Diagram
Device Specifications
Features

|
|

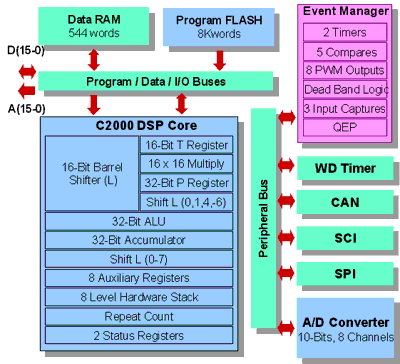

Block Diagram of 'C24x DSPs |
 |
|
'C2000 DSP Core
Event Manager
A/D Converter
CAN Module
TI's TMS320C24x DSPs offer:
Integration
• Motor Control specific Event Manager
• On-chip A/D Conversion
• Glueless QEP interface
• On-chip Control Area Networking (CAN) Module
High Performance
• 20 MIPS CPU
• 850ns A/D conversion
• High resolution PWM
|
|
