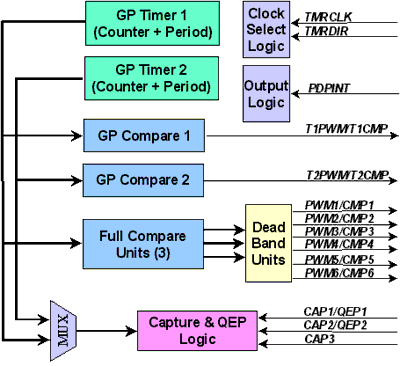

Event Manager |
 |
Features:
- Timers/Compare units require minimum CPU overhead for event timing, sampling loops, and PWM generation.
- Programmable deadband units eliminate need for external deadband logic.
- Capture and QEP units eliminate need for external speed/position sensor logic.
- PDP Interrupt protects power drive from system failure.
|
