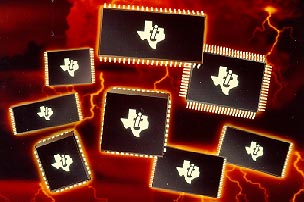

Texas Instruments Flash Memory Product Portfolio

Flash Memory Key Specifications

• Industry-standard write/erase algorithm
• Pin-for-pin compatible with industry standards
• Boot-block, even-sectored, bulk-erase devices
• Automotive-temperature-range programming, erasure and operation
• Advanced packaging options
• High performance with low power consumption
• Transistor-transistor logic (TTL)-compatible inputs and outputs

Flash Memory Advantages

• Supports in-system and on-board code changes
• Electrically erasable; erasure requires no UV light source
• Reduces code inventory and scrap
• Simplifies the task of upgrading code and reduces upgrade cycle time
• Provides just-in-time system software downloads
• Truly non-volatile
• More economical than byte-erasable EEPROM

Flash Memory End Equipment Applications

• Computers and peripherals (i.e., hard disk drives, computer systems for BIOS storage)
• Telecommunications (i.e., mobile and cellular phones)
• Industrial equipment [ i.e., industrial systems to replace battery-packed static random access memory (SRAMs) for program and data storage]
• Automotive (i.e., automobile engine control systems)
• Consumer Products

Device

Organization

Vcc/Vpp

Description

Packages

Speed (ns)

Availability

(Intel compatible)

TMS28F512A

64Kx8

5V/12V

bulk erase

32L PLCC/ 32L PDIP

90

Production

TMS28F010B

128Kx8

5V/12V

bulk erase

32L TSOP/ 32L PCLCC

90

Production

TMS28F210

64Kx16

5V/12V

bulk erase

40L TSOP/

44L PLCC

100

Production

TMS28F020

256Kx8

5V/12V

bulk erase

32L TSOP/

32L PLCC

100

Production

(AMD compatible)

TMS29F040

512Kx8

5V

sector erase, EEPROM cmds, sector protect

32L TSOP/

32L PLCC

80

Production

TMS29LF040

512Kx8

3.3V

sector erase, EEPROM cmds, sector protect

32L TSOP/

32L PLCC

100

1H97

TMS29VF040

512Kx8

2.7V-3.6V

sector erase, EEPROM cmds, sector protect

32L TSOP/

32L PLCC

100

1H97

(Intel compatible)

TMS28F200AZB/T

256Kx8,

128Kx

16

5V/12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F002AZB/T

256Kx8

5V/12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F200AMB/T

256Kx8,

128Kx

16

3.3V, 5V/12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F002AMB/T

256Kx8

3.3V, 5V/12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F200AFB/T

256Kx8,

128Kx

16

5V/5V, 12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F002AFB/T

256Kx8

5V/5V, 12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F200ASB/T

256Kx8,128Kx 16

3.3V, 5V/5V, 12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F002AB/T

256Kx8

3.3V, 5V/5V, 12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F200AEB/T

256Kx8, 128Kx 16

2.7V-3.6V, 5V/5V, 12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F002AEB/T

256Kx8

2.7V-3.6V, 5V/5V, 12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F400AZB/T

512Kx8,256Kx8

5V/12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F004AZB/T

512Kx8

5V/12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F400AMB/T

512Kx8,256Kx8

3.3V, 5V/12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F004AMB/T

512Kx8

3.3V, 5V/12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F400AFB/T

512Kx8,256Kx8

5V/5V,

12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F004AFB/T

512Kx8

5V/5V, 12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F400ASB/T

512Kx8,256Kx8

3.3V, 5V/5V,

12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F004ASB/T

512Kx8

3.3V, 5V/5V, 12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F400AEB/T

512Kx8,256Kx8

2.7V-3.6V, 5V/5V,

12V

autoselect, block erase, bottom/top boot block

48L TSOP/

44L PSOP

60

Production

TMS28F004AEB/T

512Kx8

2.7V-3.6V, 5V/5V,

12V

autoselect, block erase, bottom/top boot block

40L TSOP

60

Production

TMS28F200BZB/T

256Kx8,

128Kx 16

5V/12V

block erase, bottom/top boot block

44L PSOP

80

Production

TMS28F400BZB/T

512Kx8,256Kx 16

5V/12V

block erase, bottom/top boot block

44L PSOP

80

Production
