Programmable dual DACs let designers trade power for speed

Product Features

• Serial CMOS DAC with voltage output
• 10-bit TLC5617
• 12-bit TLC5618
• 5-V single-supply
• 20 MHz system clock
• 1.21 MHz update rate
• 3-Wire serial interface

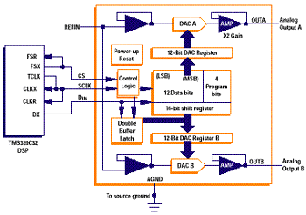

• Glueless interface to TMS320 DSPs
• Characterized for operation from 0°C – 70°C

These new, programmable, dual 12-bit and 10-bit digital-to-analog converters (DACs) offer designers high-speed and low power in combination with an easy interface to TI's line of TMS320 digital signal processors (DSPs).

Both the TLC5618 (12-bit) and TLC5617 (10-bit) feature settling-time vs. power consumption programmability (12.5-µs / 3-mW slow mode and 2.5-µs / 8-mW fast mode) and a software programmable power down mode (to 1 µA). They also offer a high-impedance buffered reference input and simultaneous or independent updates of both DACs in the package. Both devices also have a power-on-reset function that ensures repeatable power-up conditions.

The TLC5618 is a 12-bit DAC perfectly suited for applications such as cellular telephones, battery operated industrial controls, remote industrial controls, and machine and motion controls. The 16-bit digital control data is obtained over a 3-wire serial bus that is CMOS compatible.

The TLC5618 and TLC5617 are available in 8-pin SOIC packages.

The Growing TLC56xx Family of Serial Input, Voltage Output, Easy to Use DACs from TI
Device Number	Resolution	Description
TLC5615	10	Single
TLC5617	10	Dual, Programmable
TLC5618	12	Dual, Programmable

• TLC5617ID
• TLC5618ID
