TMS57014A

[description] [block diagram]
[key features] [applications]
Also Available : (In .pdf Format)
[

data sheet]

DESCRIPTION

The TMS57014A is a dual DAC using sigma-delta architecture. This product features two separate DAC channels with a common serial data interface.

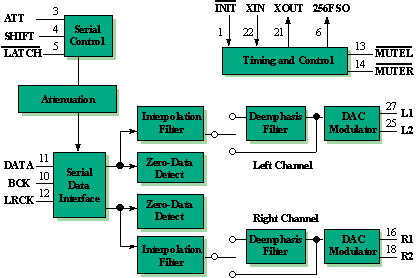

BLOCK DIAGRAM

KEY FEATURES

Sample rates up to 48 kHz
Deemphasis filter for 32, 37.8, 44.1, and 48 kHz
Digital soft mute to -60 dB
Single 5-V DC supply
18-bit resolution
Mute capability with zero data format
2s-complement data format
Pulse-width-modulation (PWM) output
Serial port interface

APPLICATIONS

Digital audio systems
Professional quality audio
High-performance, audio-speed DAC
Waveform generation
Automated test systems
