TLC320AD58

[description] [block diagram]
[key features] [applications]
Also Available : (In .pdf Format)
[

data sheet and application report]

DESCRIPTION

The TLC320AD58 is a stereo analog-to-digital converter utilizing the sigma-delta architecture. This converter contains two separate converters with a common control and serial interface.

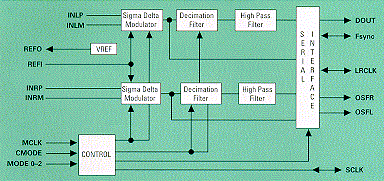

BLOCK DIAGRAM

KEY FEATURES

Power supply: Single 5 V
Power-down mode
Serial port interface
95-dB dynamic range
93-dB S/N+D
18 bit resolution
Sample rates to 48 kHz

APPLICATIONS

Consumer audio
Digital radio
Industrial process control
Multimedia audio
Workstations
DSP analog interface
