| The overview information for the M·CORE
family of microcontrollers is included on this CD for your convenience.
For specific information, please see CD3 of this CDROM set. |
M·CORE CPU and Peripheral
Overview
| Click on
any block diagram to enlarge |

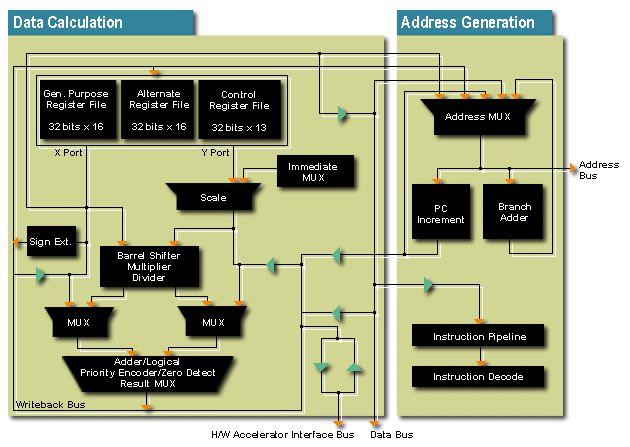

M·CORE Integer Processor
External Interface Module (EIM)
Timer/Reset Module

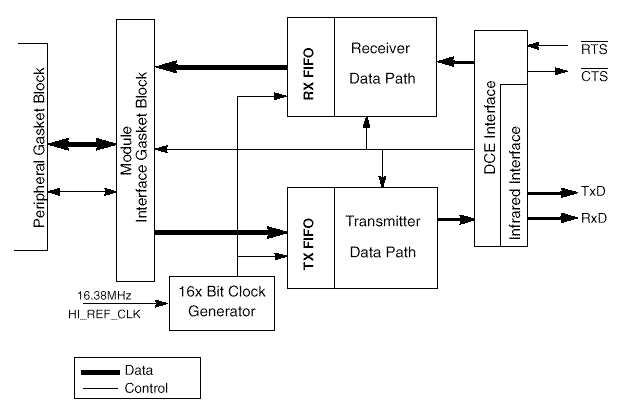

Universal Asynchronous Receiver/Transmitter Module (UART)

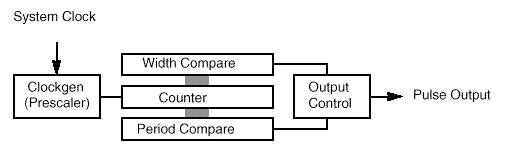

Pulse-Width Modulation Module (PWM)

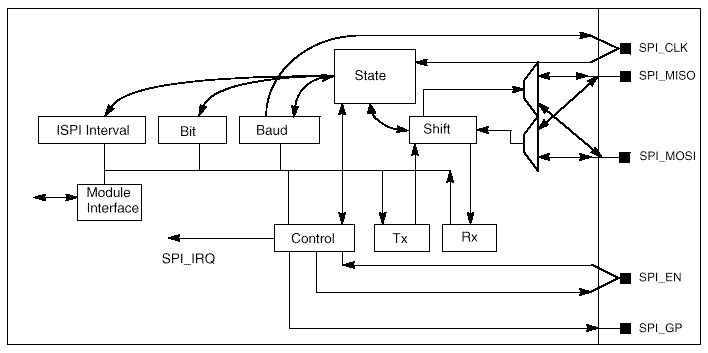

Interval Mode Serial Peripheral Interface (ISPI)
M·CORE Product Overview
MMC2001
The first MCU to feature the flexible new M·CORE
architecture from Motorola is a fast, ultra-low power controller
chip that will bring highly cost effective performance to battery-powered
systems.
Watch for announcements on new M·CORE
products!
M·CORE Development Tools Overview
A solid selection of M·CORE dendors.
Tools include highly optimized compilers, instruction-set simulators,
debuggers, target monitors, software/hardware co-verification tools,
real-time operating systems, and evaluation boards, as shown in
the table below.
To assure high-quality development tools, the M·CORE
technology center developed an application binary interface standard
that defines requirements for creating M·CORE
toolchain components. Adherence to the standard guarantees interoperability
with other ABI compliant tools and allows developers to evaluate
and select tools based on performance, rather than compatibility.
To provide additional support and protection, M·CORE
development tools are fully tested to ensure "customer-ready"
validation before release.
|
