MPC5xx CPU and Peripheral Overview

Click on any block diagram to enlarge

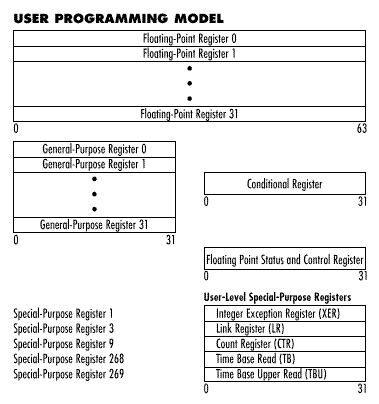

RISC MCU Central Processor Unit (RCPU)

  • 32-bit PowerPC Architecture (compliant with PowerPC Architecture Book 1)
  • Core performance measured at 52.7 K MIPS (Dhrystone 2.1) @ 40 MHz
  • Fully static, low-power operation
  • Integrated double precision floating-point unit
  • Precise exception model
  • Extensive system development support
  • On-chip watchpoints and breakpoints
  • Program flow tracking
  • On-chip emulation (OnCE™) development interface

  • Four-Bank Memory Controller

  • Works with SRAM, EPROM, FLASH EEPROM, and other peripherals
  • Byte write enables
  • 32-bit address decodes with bit masks
  • Memory transfer start (MTS): This pin is the transfer start signal to access a slave's external memory by an external bus master

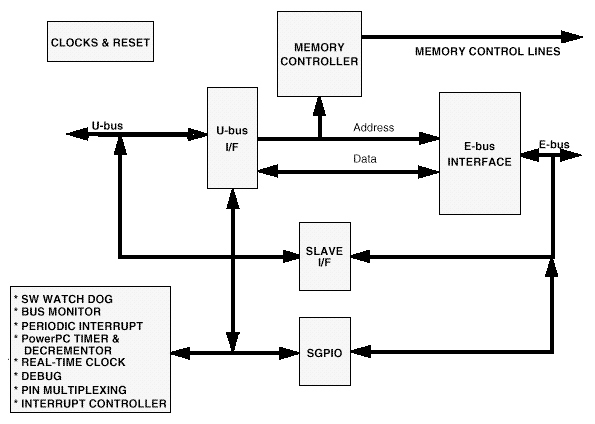

  • System Interface Unit (SIU) U-Bus System Interface Unit (USIU)

  • Clock synthesizer
  • Power management
  • Reset controller
  • PowerPC decrementer and timebase
  • Glueless interface to SRAMs and burstable FLASH
  • Real-time clock register
  • Periodic interrupt timer
  • Hardware bus monitor and software watchdog timer
  • Interrupt controller that supports up to eight external and eight internal interrupts
  • IEEE 1149.1 JTAG test access port
  • External bus interface
  • 24 address pins, 32 data pins
  • Supports multiple master designs
  • Four-beat transfer bursts, two-clock minimum bus transactions
  • Tolerates 5-V inputs, provides 3.3-V outputs

  • Flexible Memory Protection Unit

  • Four instruction regions and four data regions
  • 4-Kbyte to 16-Mbyte region size support
  • Default attributes available in one global entry
  • Attribute support for speculative accesses

  • General-Purpose I/O Support

  • Address (24) and data (32) pins can be used for general-purpose I/O in single-chip mode
  • Nine general-purpose I/O pins in MIOS1 unit
  • Many peripheral pins can be used for general-purpose I/O when not used for primary function
  • 5-V outputs

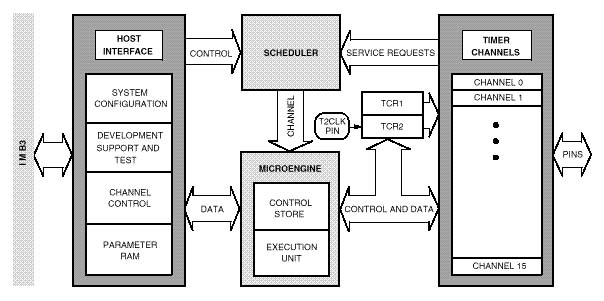

  • Time Processor Unit (TPU3)

  • A dedicated micro-engine that operates independently of the RCPU
  • 16 independent programmable channels and pins
  • Each channel has an event register consisting of a 16-bit capture register, a 16-bit compare register, and a 16-bit comparator
  • Nine pre-programmed timer functions are available
  • Any channel can perform any time function
  • Each timer function can be assigned to more than one channel
  • Two timer count registers with programmable prescalers
  • Each channel can be synchronized to one or both counters
  • Selectable channel priority levels
  • 5-V outputs

  • 18-Channel Modular I/O System (MIOS1)

  • Ten double action submodules (DASMs)
  • Eight dedicated PWM submodules (PWMSMs)
  • Two 16-bit modulus counter submodules (MCSMs)
  • Two parallel port I/O submodules (PIOSM)
  • 5-V outputs

  • Queued Analog-to-Digital Converter Module (QADC)

  • Up to 16 analog input channels, using internal multiplexing
  • Up to 41 total input channels, using internal and external multiplexing
  • 10-bit resolution with internal sample/hold
  • Typical conversion time of 10 msec (100,000 samples per second)
  • Two conversion command queues of variable length
  • Automated queue modes initiated by:
  • External edge trigger/level gate
  • Software command
  • 64 result registers
  • Output data that is right- or left-justified, signed or unsigned

  • Controller Area Network Module (CAN)

  • Full implementation of CAN protocol specification, version 2.0 A and B
  • Each module has 16 receive/transmit message buffers of 0 to 8 bytes data length
  • Global mask register for message buffers 0 to 13
  • Independent mask registers for message buffers 14 and 15
  • Programmable transmit-first scheme: lowest ID or lowest buffer number
  • 16-bit free-running timer for message time-stamping
  • Low-power sleep mode with programmable wakeup on bus activity
  • Programmable I/O modes
  • Maskable interrupts
  • Independent of the transmission medium (external transceiver is assumed)
  • Open network architecture
  • Multimaster concept
  • High immunity to EMI
  • Short latency time for high-priority messages

  • Queued Serial Multi-Channel Module (QSMCM)

  • Queued serial peripheral interface (QSPI)
  • Provides full-duplex communication port for peripheral expansion or interprocessor communication
  • Up to 32 preprogrammed transfers, reducing overhead
  • Has 160-byte queue
  • Programmable transfer length: from eight to 16 bits, inclusive
  • Synchronous interface with baud rate of up to system clock / 4
  • Four programmable peripheral-select pins support up to 16 devices
  • Wrap-around mode allows continuous sampling of a serial peripheral for efficient interfacing to serial A/D converters
  • Two serial communications interfaces (SCI), each offering these features:
  • UART mode provides NRZ format and half- or full-duplex interface
  • 16 register receive buffer and 16 register transmit buffer (SCI1)
  • Advanced error detection and optional parity generation and detection
  • Word length programmable as eight or nine bits
  • Separate transmitter and receiver enable bits and double buffering of data
  • Wakeup functions allow the CPU to run uninterrupted until either a true idle line is detected or a new address byte is received
  • External source clock for baud generation
  • Multiplexing of transmit data pins with discrete outputs and receive data pins with discrete inputs



  • MPC555 Product Overview

  • PowerPC core with floating-point unit
  • 26 Kbytes fast SRAM and 6 Kbytes TPU microcode SRAM
  • 448 Kbytes FLASH EEPROM with 5-V programming
  • 5-V I/O system
  • Serial system: queued serial multi-channel module (QSMCM)
  • Dual CAN 2.0B controller modules (TouCAN)
  • 50-channel timer system with dual time processor units (TPU3) and modular I/O system (MIOS1)
  • 32 analog inputs: Dual queued analog-to-digital converters (QADC64)
  • 272-pin plastic ball grid array (PBGA) packaging
  • 40-MHz operation, -40° C to 125° C with dual supply (3.3 V, 5 V)


  • MPC5XX Development Tool Overview

    A solid selection of MPC5XX development tools are available from Motorola, Inc. and from established third-party vendors. Tools include highly optimized compilers, debuggers, target monitors, software/hardware co-verification tools, real-time operating systems, and evaluation boards. To assure high-quality development tools, an application binary interface standard was developed that defines requirements for creating MPC5XX toolchain components. Adherence to the standard guarantees interoperability with other ABI compliant tools and allows developers to evaluate and select tools based on performance, rather than compatibility.
