Integrated supply voltage supervisor and watchdog timer in SOT-23 package

Product Features

2.5-V, 3.0-V, 3.3-V and 5.0-V options
Fixed delay time of 200 ms
Watchdog timer
25-µA supply current max
No external components required
Characterized for operation from –40°C to 85°C

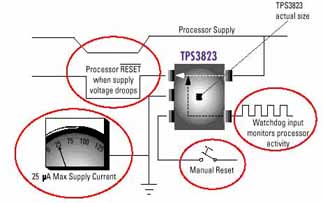

Texas Instruments new TPS3823-xx and TPS3824-xx microprocessor supervisory circuits combine precision supply voltage monitoring with a watchdog timer and a manual reset. They are the only fixed 2.5-V supervisors available in a micro-sized SOT-23 package. The TPS3823 offers a manual reset input, while the TPS3824 features a high-level reset output.

The output is guaranteed asserted when V_DD reaches 1.1 V eliminating undefined states during power-up. After supply voltages reach operating thresholds, a fixed reset delay time of 200 ms ensures that the supply has stabilized and the system has been properly reset before processor operation is allowed. Reset thresholds are guaranteed to 2% accuracy.

Applications:

Laptops
Cellphones
Portable battery-powered equipment

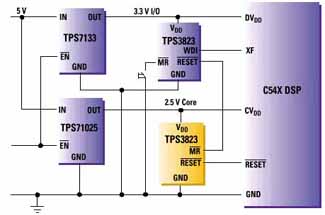

Microprocessor and DSP monitoring
