Family of rail-to-rail I/O operational amplifier drive ± 90-mA loads

Product Features

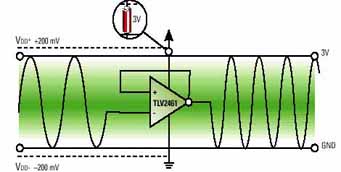

Rail-to-rail input and output (RRIO)
Drives ± 90-mA loads
High bandwidth:
4.4 MHz
Low noise:
11 nV Input offset voltage:
100 µV
Complete family of singles, duals, and quads
Characterized for operation from 0°C to 70°C and –40°C to 125°C

The TLV246x family of low-voltage single supply operational amplifiers feature full rail-to-rail input and output operation. These devices operate over a supply voltage range of 2.7 V to 6 V, and are fully specified at 3 V and 5 V. The RRIO, superior ac performance (4.4-MHz bandwidth and 1.8-V/µs slew rate) and 250- output drive are ideal for multiple applications including:

Data acquisition circuits
Portable equipment
Cellular
Telecom
Signal conditioning

Each device is available with or without shutdown (I_SD = 0.6 µA) and in several package and temperature options. The table provides an overview of the corresponding part numbers and options, including the industry's first single op amp with shutdown in a SOT-23-6 package.

The TLV2462 and TLV2463 are available today in production volumes. The other family members are scheduled to be in full production by September 1, 1998.

For applications requiring increased ac performance, consider the TLV277x family.

TI&ME

To order your free copy of the:

Vol 28 August, 1998

TLV246x Family Package Types

Part No. No. of Ch. Shutdown † SOT-23 MSOP TSSOP SOIC PDIP

TLV2460 ‡ 1 3 6 – – 8 8

TLV2461 ‡ 1 – 5 – – 8 8

TLV2462 2 – – 8 – 8 8

TLV2463 2 – 10 – 14 14

TLV2464 ‡ 4 – – – 14 14 14

TLV2465 ‡ 4 – – 16 16 16

† Outputs switch to high-impendence state in shutdown.
‡ Available in September 1998.

TLV246x Family			Package Types
Part No.	No. of Ch.	Shutdown †	SOT-23	MSOP	TSSOP	SOIC	PDIP
TLV2460 ‡	1		3 6	–	–	8	8
TLV2461 ‡	1	–	5	–	–	8	8
TLV2462	2	–	–	8	–	8	8
TLV2463	2		–	10	–	14	14
TLV2464 ‡	4	–	–	–	14	14	14
TLV2465 ‡	4		–	–	16	16	16
† Outputs switch to high-impendence state in shutdown. ‡ Available in September 1998.
