Product Features

• Designed to evaluate single and dual op amps in SOT-23-5, MSOP, TSSOP, and SOIC packages
• Eliminates need for through-hole packages
• Complete User's Guide features detailed schematics, board layout, and several example circuits
• IT'S FREE!

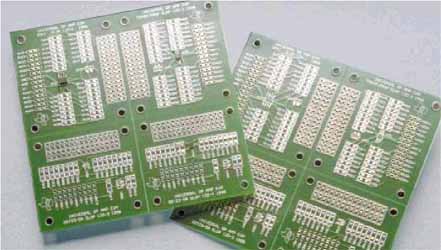

The Universal Op Amp Evaluation Module is a printed circuit board (PCB) that greatly reduces design time and eliminates the need for PDIP packages for evaluation. The module is optimized for multple circuit layouts including:

• Voltage follower
• Noninverting amplifier
• Inverting amplifier

• Simple or algebraic summing amplifier
• Difference amplifier

• Current to voltage converter
• Voltage to current converter

• Integrator/low pass filter
• Differentiator/high pass filter
• Instrumentation amplifier
• Sallen-Key filter

The board is comprised of four circuit development areas which can be easily separated into stand-alone modules. Two areas are for single op amps in SOT-23-5 packages.

The remaining two modules are for dual op amps in TSSOP, MSOP and SOIC packages. A User's Guide provides complete schematics of the board, its layout, and easy-to-follow example circuits.

The Universal Op Amp Module and its User's Guide are available at no cost.

See the TLV246x and TLV277x feature articles in this issue. Members from each family are available in evaluation kits which include the Universal Op Amp Module. An industry first, the Universal Op Amp Evaluation Model.

To order your free copy of the:

• Universal Op Amp Evaluation Model kit with and without devices attached
