75-mW hi-fi low-voltage audio power amplifier

Product Features

Ultra-low THD+N: < 0.005% at 1 kHz
75-mW stereo output drive
Internal mid-rail generator
Depop circuitry
Pin compatible with TPA302
Characterized for operation from –40°C to 85°C

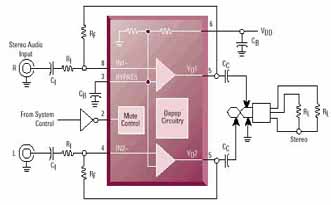

The TPA152 is a low-voltage audio power amplifier designed to drive stereo headphones. This amplifier delivers 75-mW stereo to a 32- load with less than 0.01% THD+N across the entire audio frequency band. Its hi-fi sound quality makes it well suited for applications including:

Portable CD players
Notebook computers
Voice recorders
Headphone amplifiers
Output buffer for audio CODECs in PCs

The TPA152 also features an integrated mid-rail generator. This circuitry minimizes component count by internally biasing the reference voltage.

The need for an external voltage divider is eliminated, saving time, board space and money.

TI is a recognized leader in providing audio power amplifier (APA) solutions. Each APA provides a unique set of features applicable to multiple designs.

The TPA152 is available in an 8-pin SOIC package.

Design Tools:

Hardware EVMs:
http://www.ti.com/sc/docs/msp/tools/audio.htm
Power Analysis Program:
http://www.ti.com/sc/docs/msp/pran/audio.htm
Reference Designs:
http://www.ti.com/sc/docs/msp/tools/audio.htm

TPA152D

Vol 28 August, 1998

Texas Instruments Audio Power Amplifier Selection Guide

Device Description Output
Power
(W) THD+N
(%)
typ VCC/VDD
(V)

Min Max ICC/IDD
(mA)
typ PSRR
(dB, 1 kHz)
typ Shutdown
Control Packages

TPA152 75 mW stereo, SE 0.075 0.005 2 5.5 5.5 81 8-pin SOIC

TPA301 350 mW mono, BTL 0.35 0.3 2 5.5 0.7 78 3 8-pin SOIC*/MSOP*

TPA311 350 mW mono, SE/BTL 0.35 0.3 2 5.5 0.7 78 3 8-pin SOIC*/MSOP*

TPA4861 1 W mono, BTL 1 0.2 2.7 5.5 3.5 56 3 8-pin SOIC +

TPA4860 1 W mono, BTL w/hp sense 1 0.2 2.7 5.5 3.5 56 3 16-pin SOIC

TPA0202 2 W stereo, SE/BTL 2.0 0.05 3 5.5 19 75 3 8-pin SOIC

TPA0102 1.5 W stereo, SE/BTL 1.5 0.05 3 5.5 19 75 3 24-pin TSSOP*

TPA0103 1.75 W 3-channel stereo 1.75 0.05 3 5.5 19 80 3 24-pin TSSOP*

TPA302 300 mW stereo, SE 0.3 1 2.7 5.5 4 45 3 8-pin SOIC +

TPA1517 6 W stereo SE 6 10 9.5 18 30 65 3 20-pin SOIC*/DIP +

SE = Single Ended
BTL = Bridged-Tied Load
hp = Headphone * PowerPAD Package
+ Thermally Enhanced Package

The TPA152 is a low-voltage audio power amplifier designed to drive stereo headphones. This amplifier delivers 75-mW stereo to a 32-ohm load with less than 0.01% THD+N across the entire audio frequency band.

Texas Instruments Audio Power Amplifier Selection Guide
Device	Description	Output Power (W)	THD+N (%) typ	VCC/VDD (V) Min Max		ICC/IDD (mA) typ	PSRR (dB, 1 kHz) typ	Shutdown Control	Packages
TPA152	75 mW stereo, SE	0.075	0.005	2	5.5	5.5	81		8-pin SOIC
TPA301	350 mW mono, BTL	0.35	0.3	2	5.5	0.7	78		3 8-pin SOIC/MSOP
TPA311	350 mW mono, SE/BTL	0.35	0.3	2	5.5	0.7	78		3 8-pin SOIC/MSOP
TPA4861	1 W mono, BTL	1	0.2	2.7	5.5	3.5	56		3 8-pin SOIC +
TPA4860	1 W mono, BTL w/hp sense	1	0.2	2.7	5.5	3.5	56		3 16-pin SOIC
TPA0202	2 W stereo, SE/BTL	2.0	0.05	3	5.5	19	75		3 8-pin SOIC
TPA0102	1.5 W stereo, SE/BTL	1.5	0.05	3	5.5	19	75		3 24-pin TSSOP*
TPA0103	1.75 W 3-channel stereo	1.75	0.05	3	5.5	19	80		3 24-pin TSSOP*
TPA302	300 mW stereo, SE	0.3	1	2.7	5.5	4	45		3 8-pin SOIC +
TPA1517	6 W stereo SE	6	10	9.5	18	30	65		3 20-pin SOIC*/DIP +
