Rotating Antenna

This is the rotating antenna in the 40-190. I believe this same antenna is used in other console models including the 40-180. To be sure compare the specific schematics of other models against the 40-190. (Table Radio internal fixed antenna.)

The Short wave antenna (a simple loop of about 24 inches or less of wire suspended by stiff cardboard) is not shown here. Images of it will be added later. Message me if you need a picture sooner. This loop is stapled to the top of the cabinet, above the chassis.

I will later add text descriptions to the pictures.

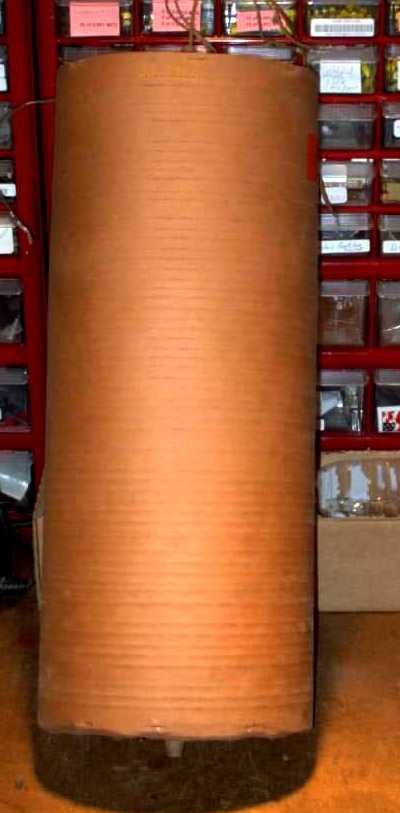

That is a copper strip that runs the whole length of the antenna. It is only connected to the black wire.

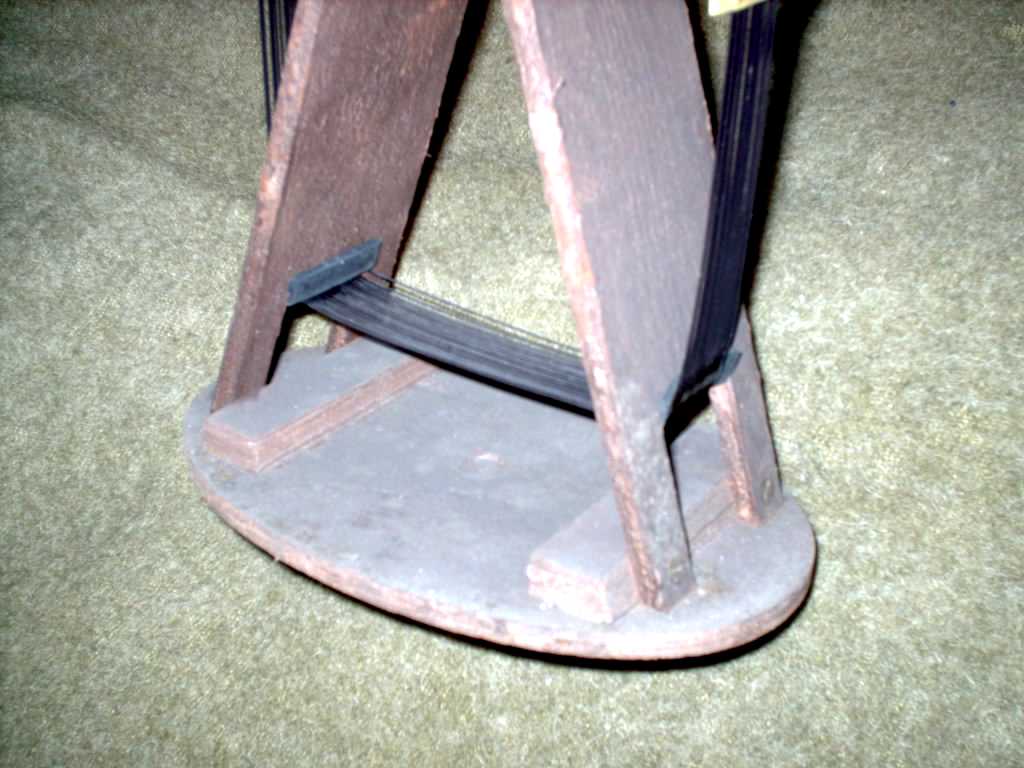

Insulator or padding at coil turn points.


Re-establishing spacing.

I did not measure the wire gauge. But it is enamel covered solid conductor about 22 to 24 or 26 GA magnetic wire if I had to guess.

This is essentially a one inch thick, 13.5 by 4.5 inch rectangle with a metal strip in close proximity.

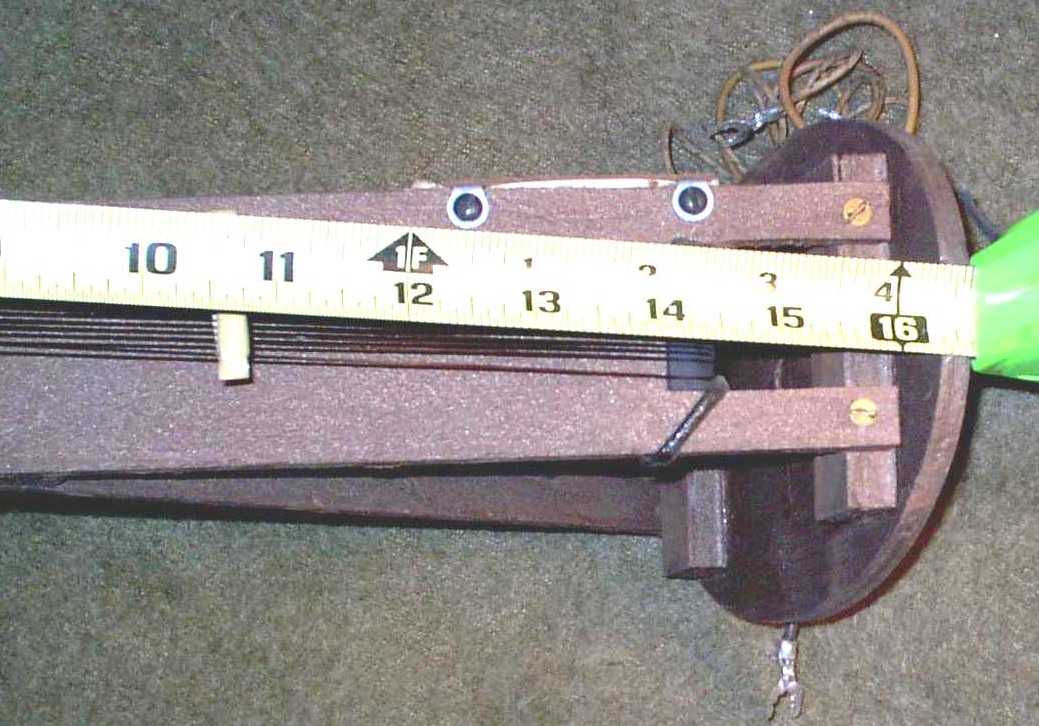

13.5 inches tall coil.

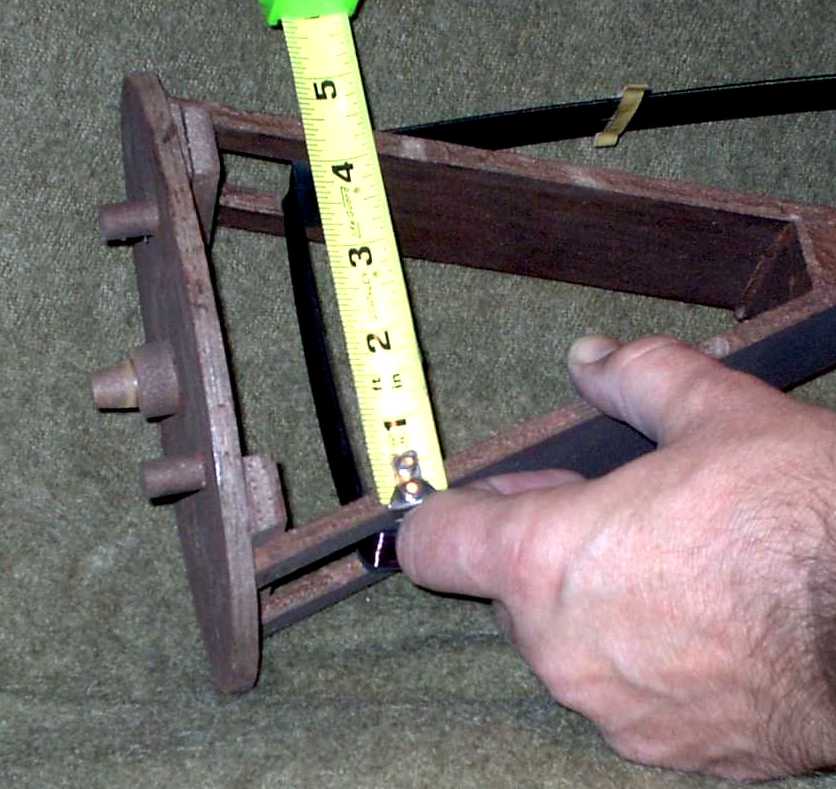

4.5 inches wide coil.

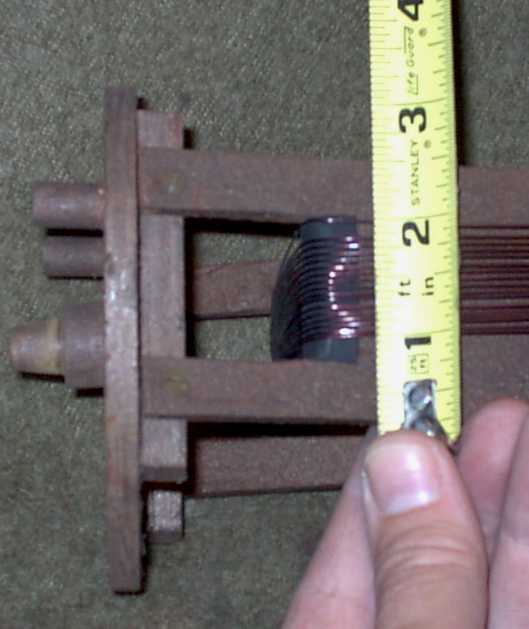

1.0 inch thick (burn an inch) coil.

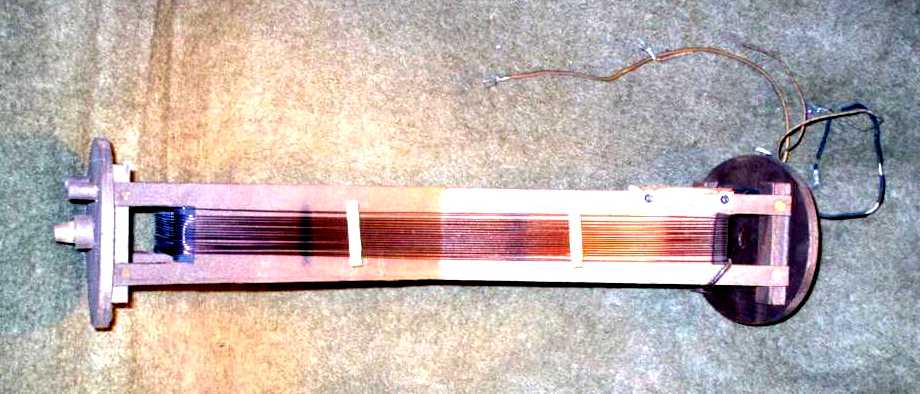

Overall dimension.

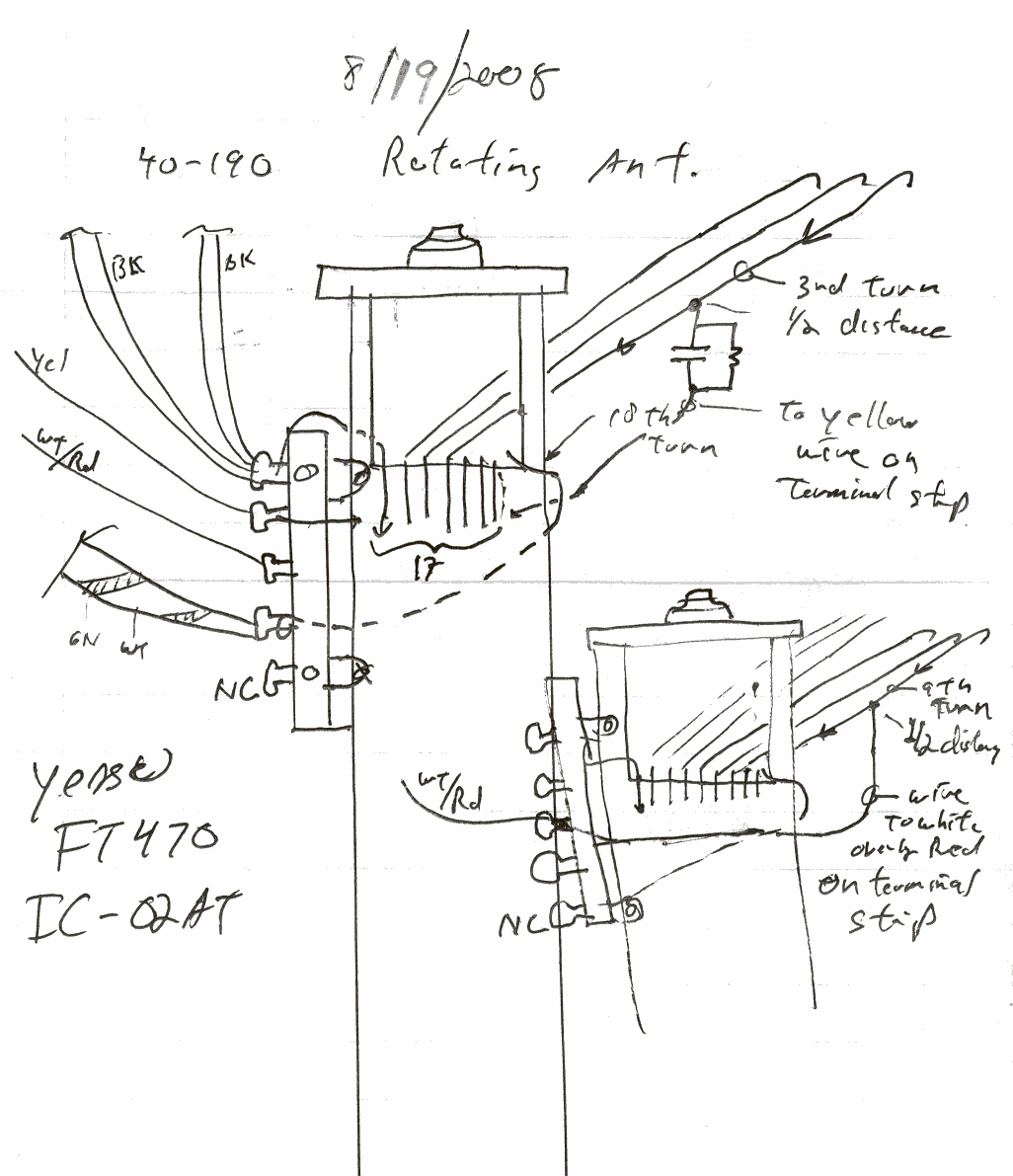

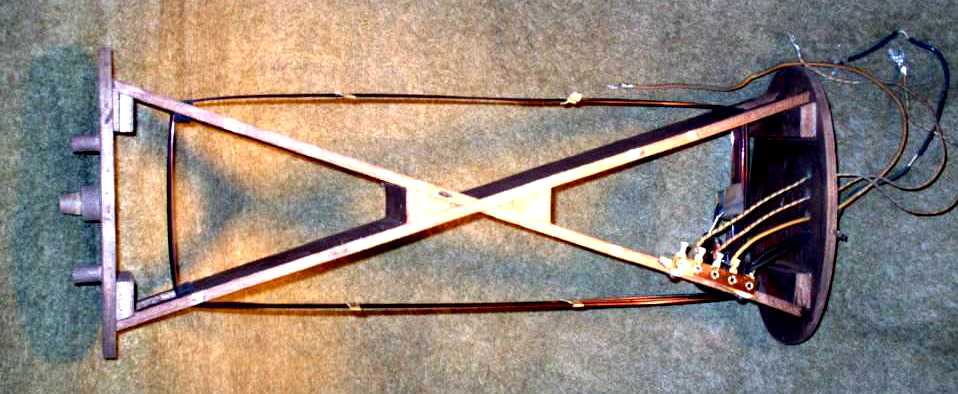

	Windings, taps, capacitor and resistor. See schematic for R/C values.
	One of the black wires is soldered to the metal strip in the out side paper cover.

Contact me including your thoughts and comments.
